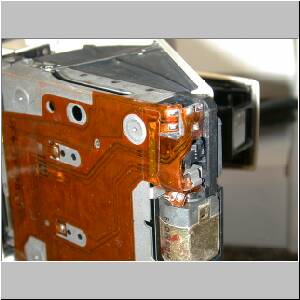

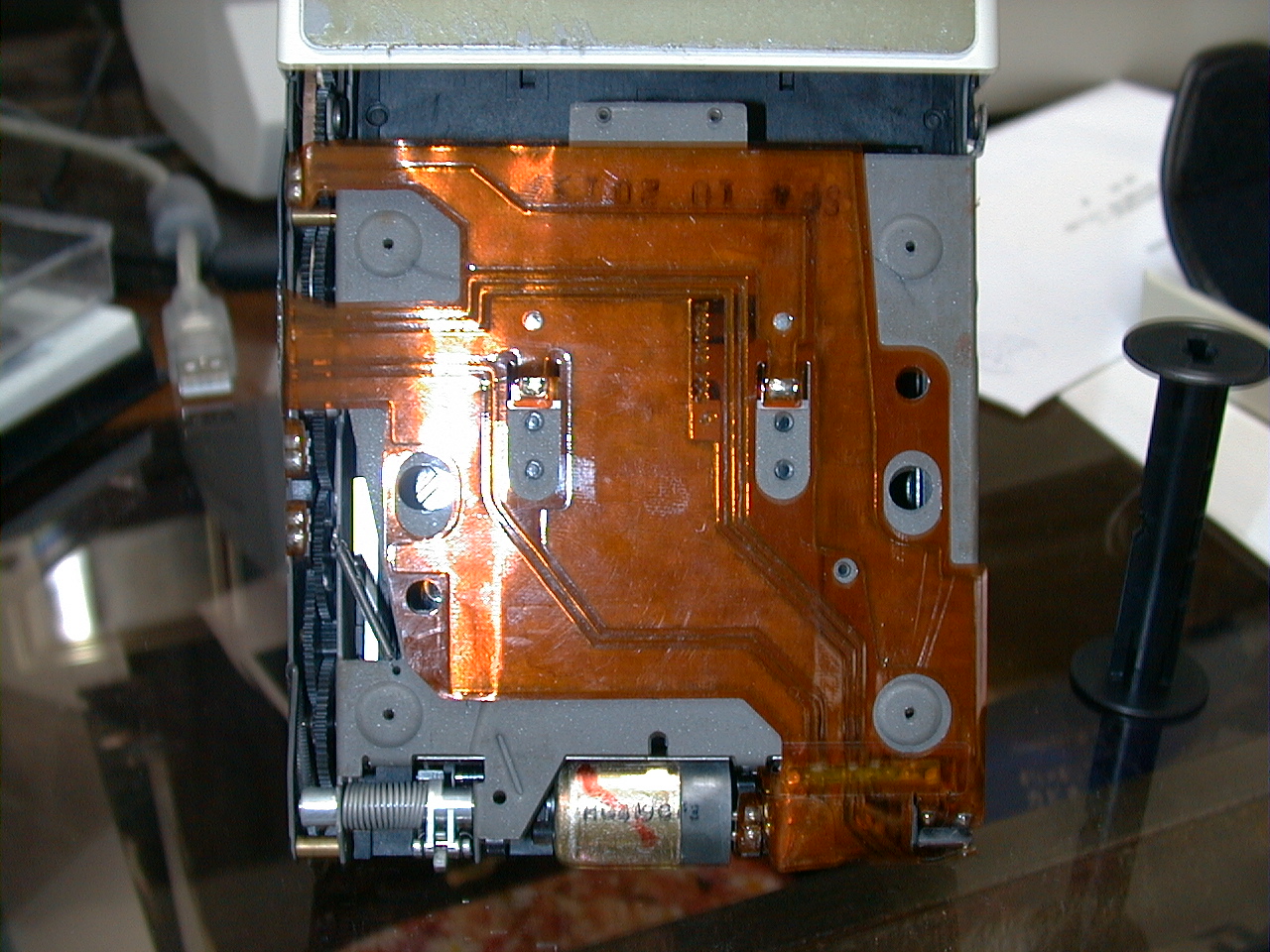

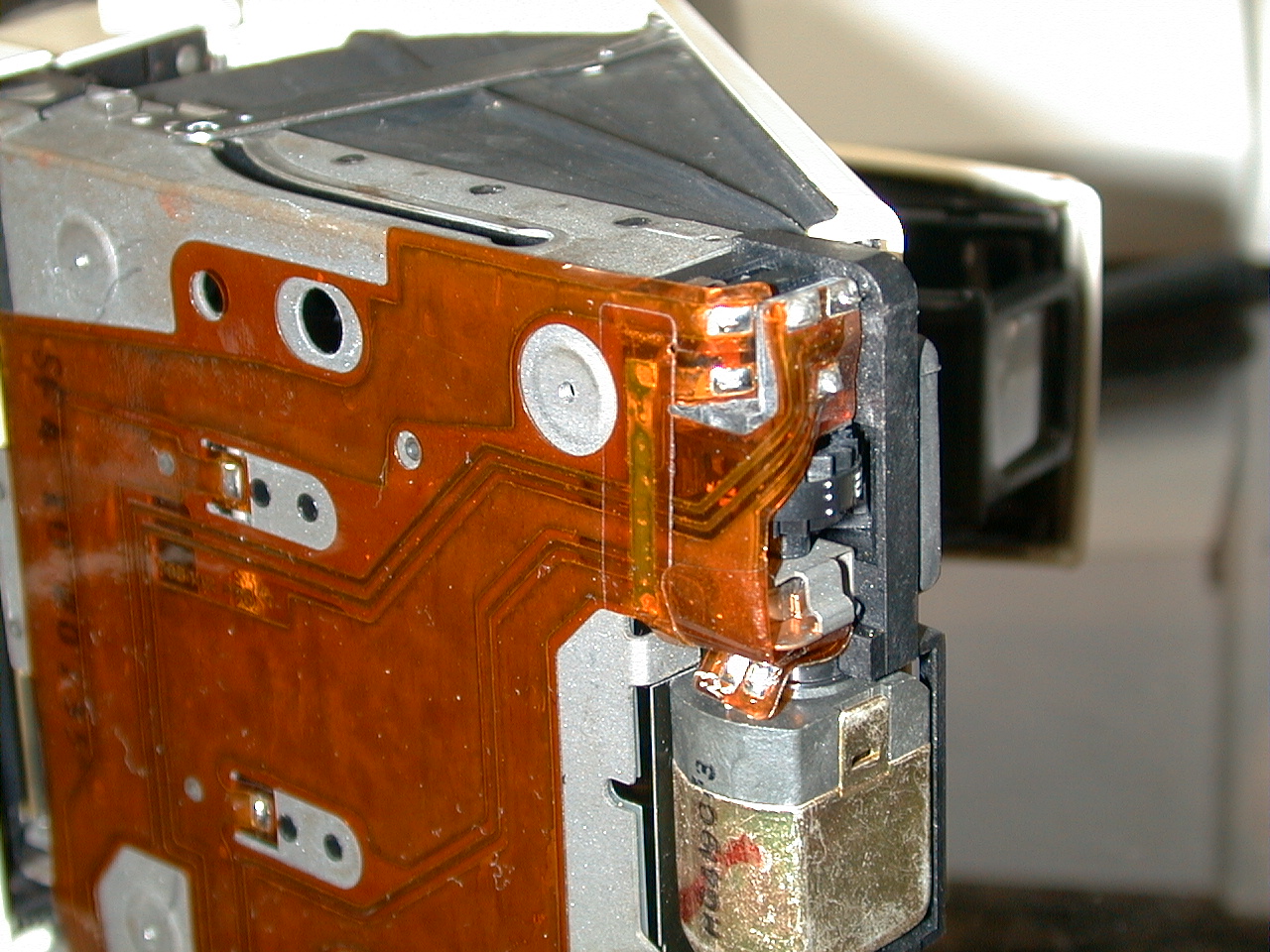

Internal flexible circuit spread at the bottom of the camera. I must remove it and replace with wires to convert it for 120 type film.
|

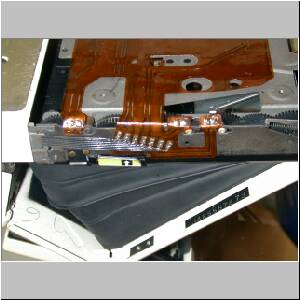

The other angle of the bottom of the camera. Gear train is covered by flexible circuit. Some contact to check the sequence of mecanism is shown here.
|
![DSC00004.JPG](DSC00004_t.jpg)

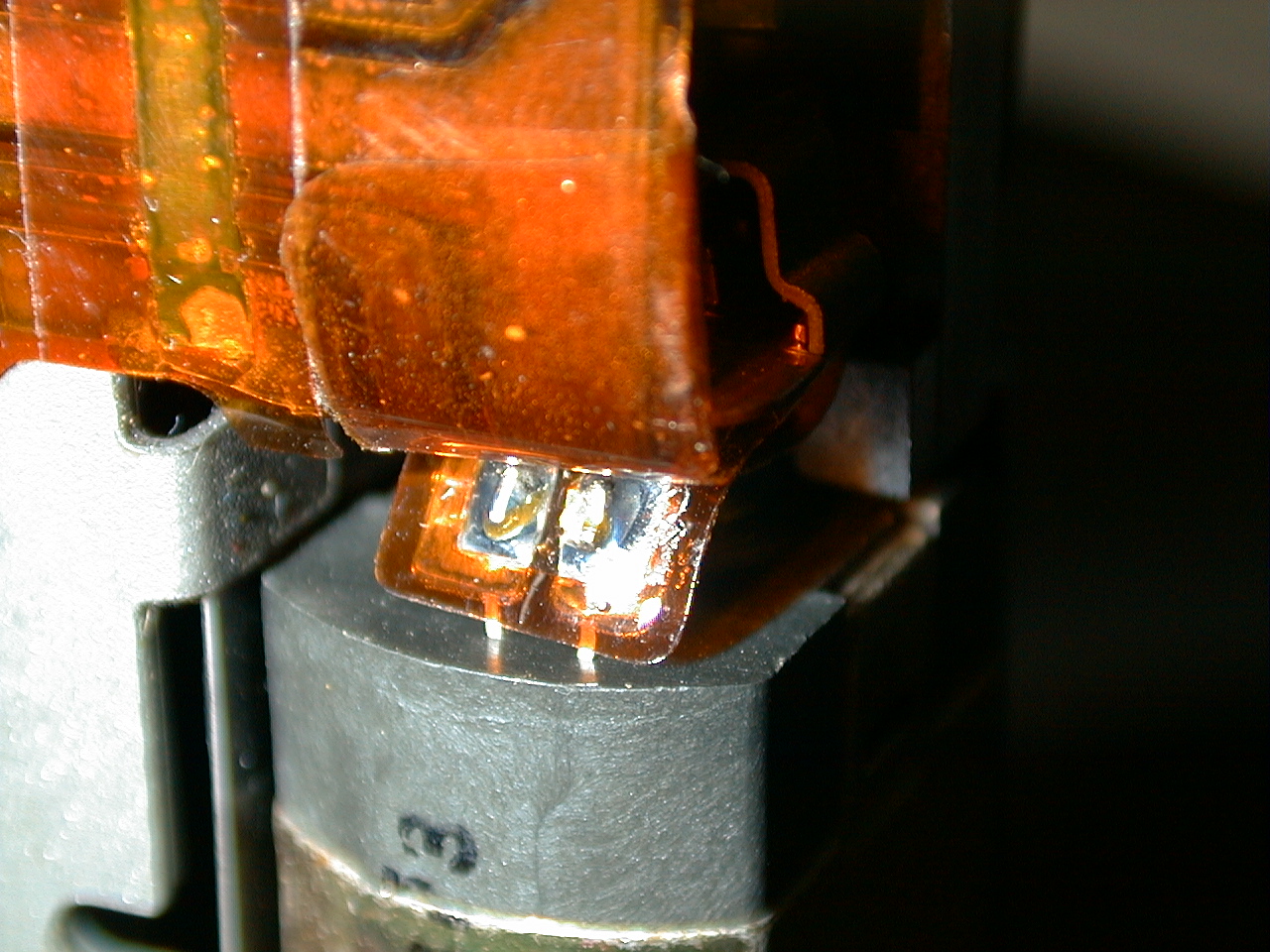

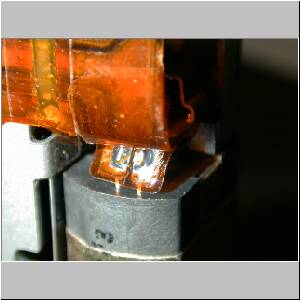

Circuit for driving motor and checking the film counter. |
![DSC00006.JPG](DSC00006_t.jpg) |
![DSC00007.JPG](DSC00007_t.jpg)

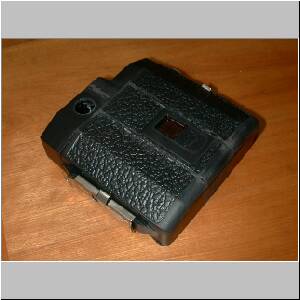

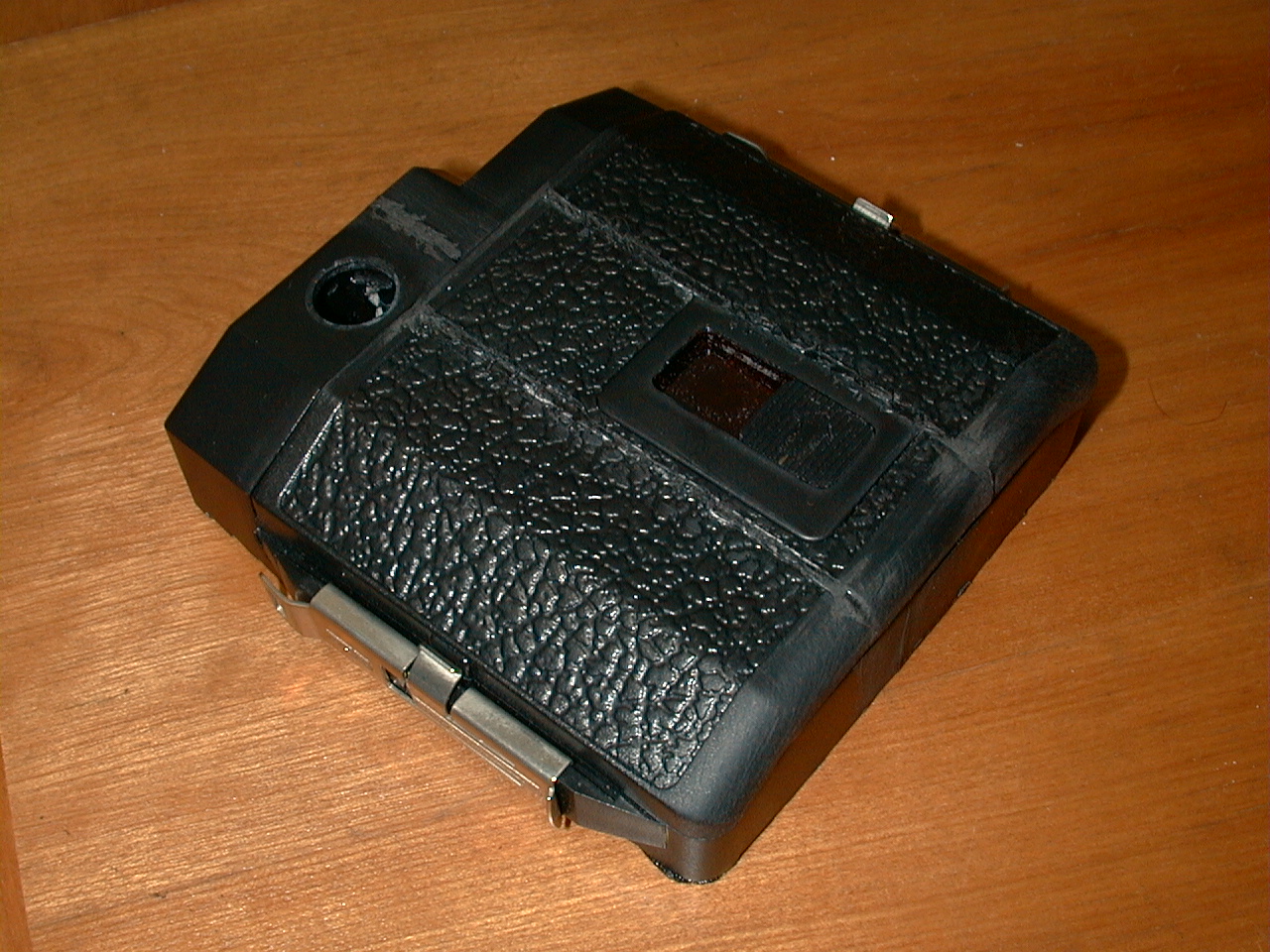

Holga camera is cut and shortened using hot glue. |
![DSC00008.JPG](DSC00008_t.jpg)

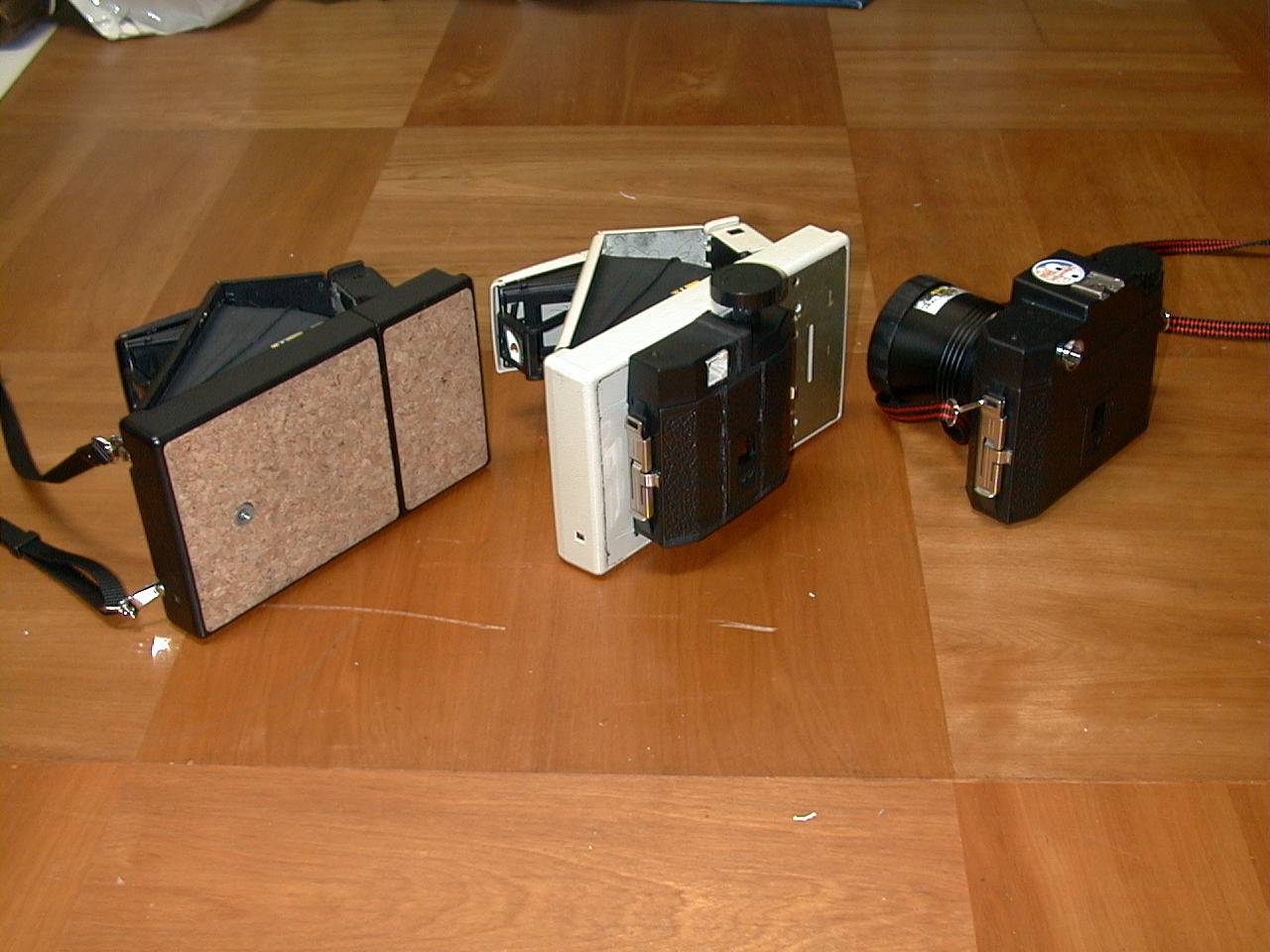

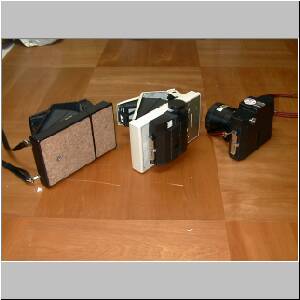

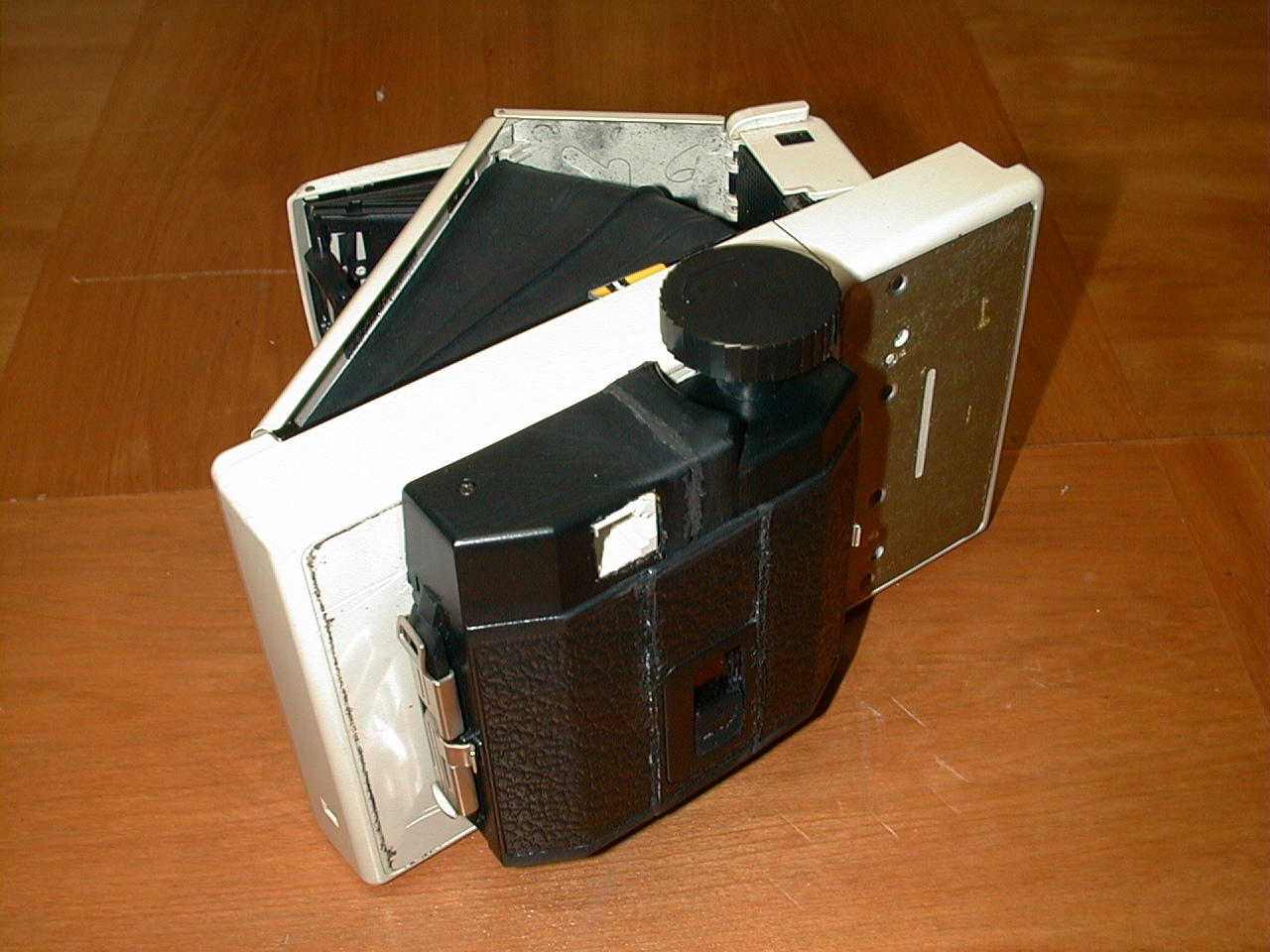

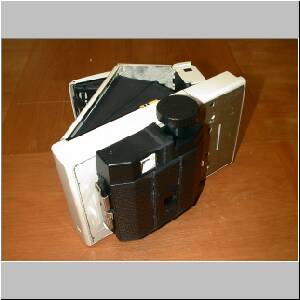

film holder is attached at the bottom of the camera. Left to right, original SX-70, modified and original Holga camera. |
![DSC00009.JPG](DSC00009_t.jpg) |

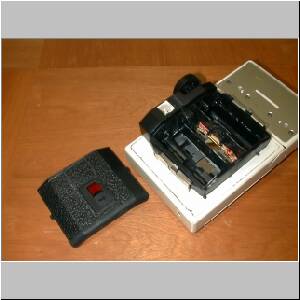

![DSC00010.JPG](DSC00010_t.jpg)

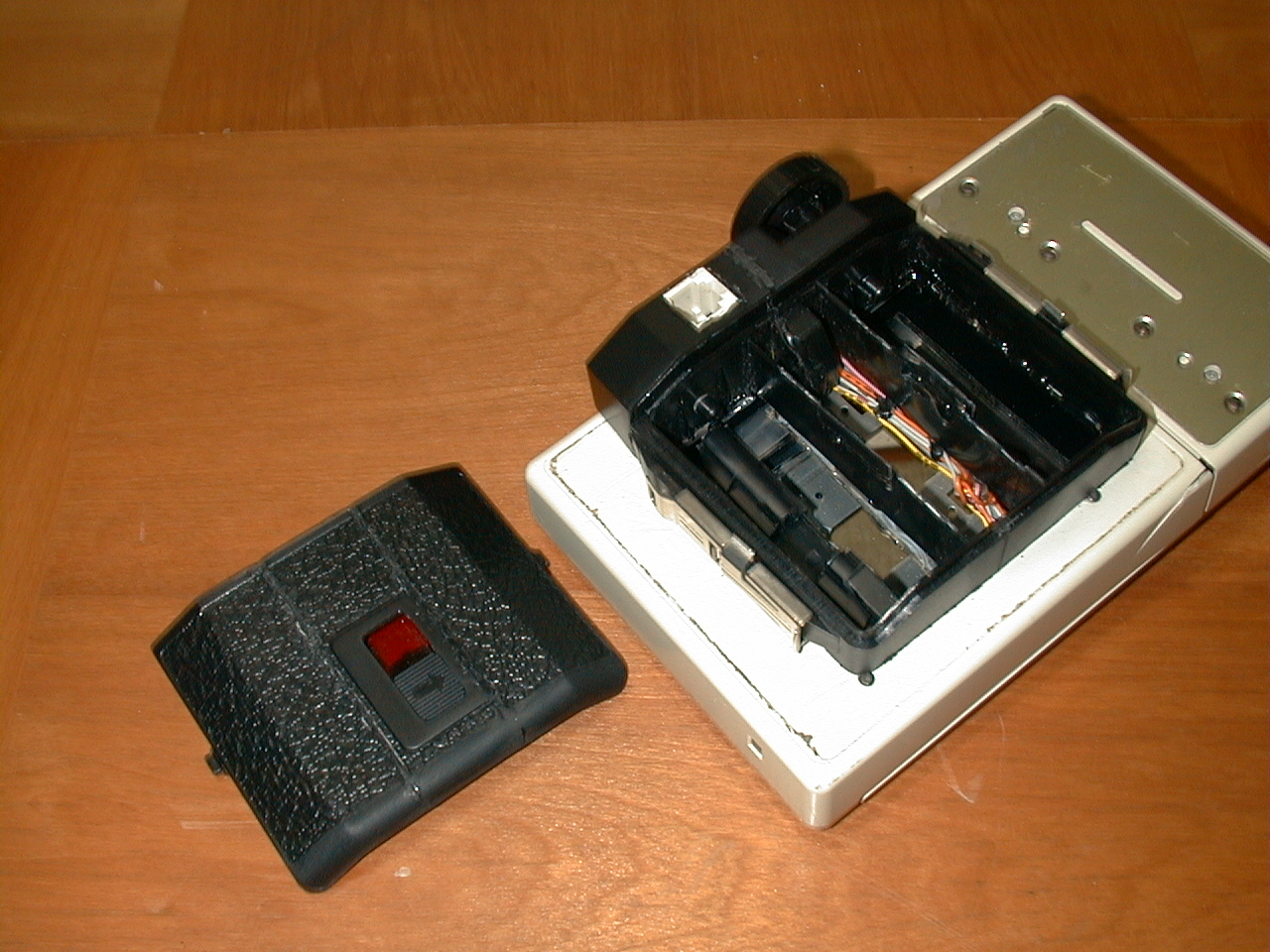

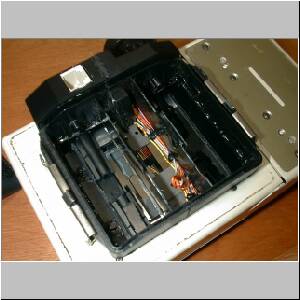

Internal modification of SX-HOLGA, the flexible circuit and metal frame is cut to pass through the roll film. |
![DSC00011.JPG](DSC00011_t.jpg)

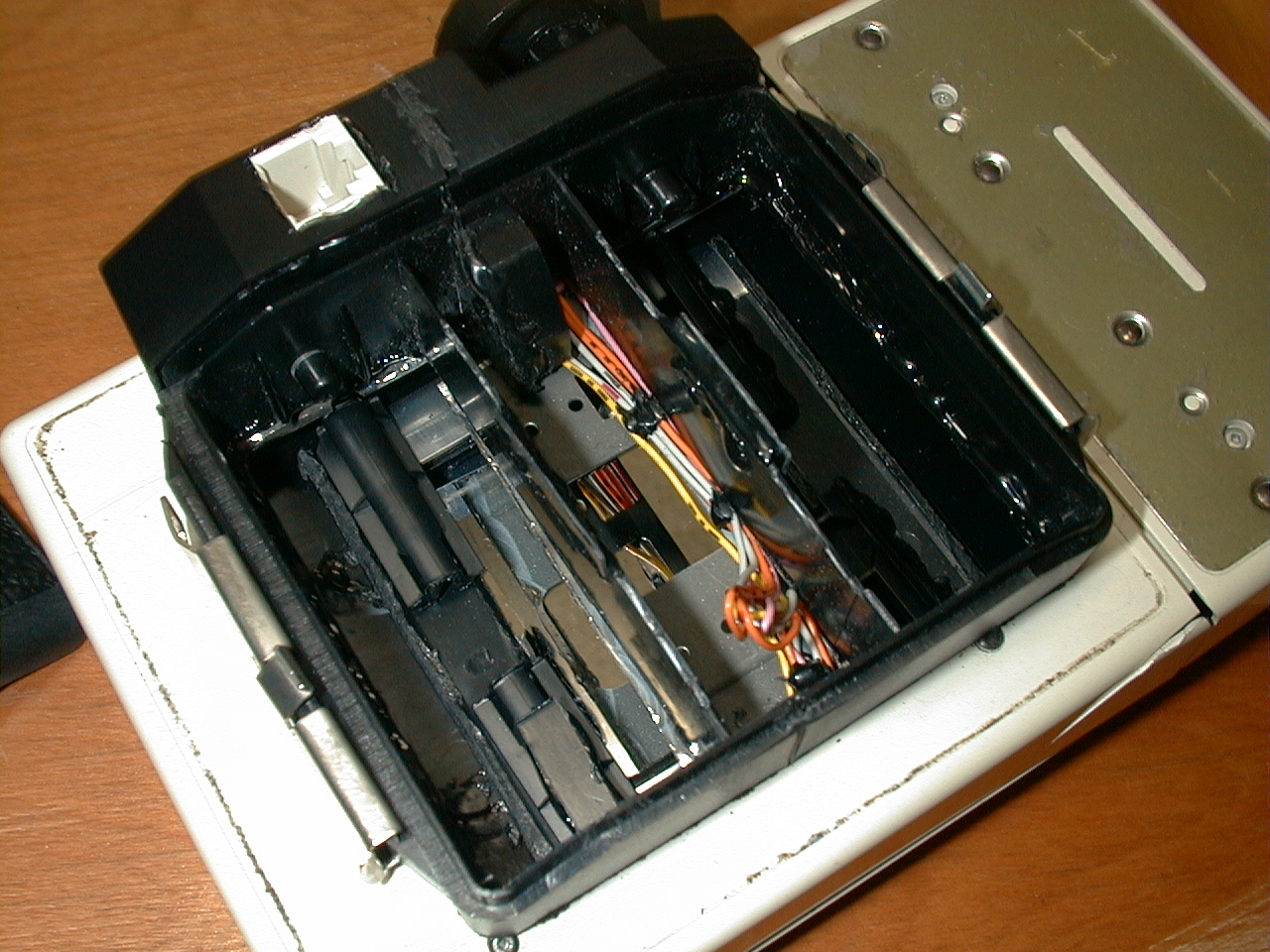

Top white part is the connecter for batteries which is used to drive SX-70. Wires in the camera is used to replace flexible print circuit. |
![DSC00012.JPG](DSC00012_t.jpg)

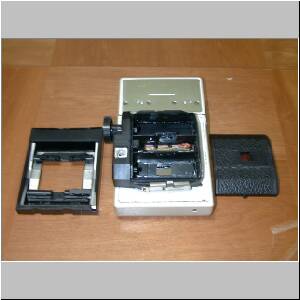

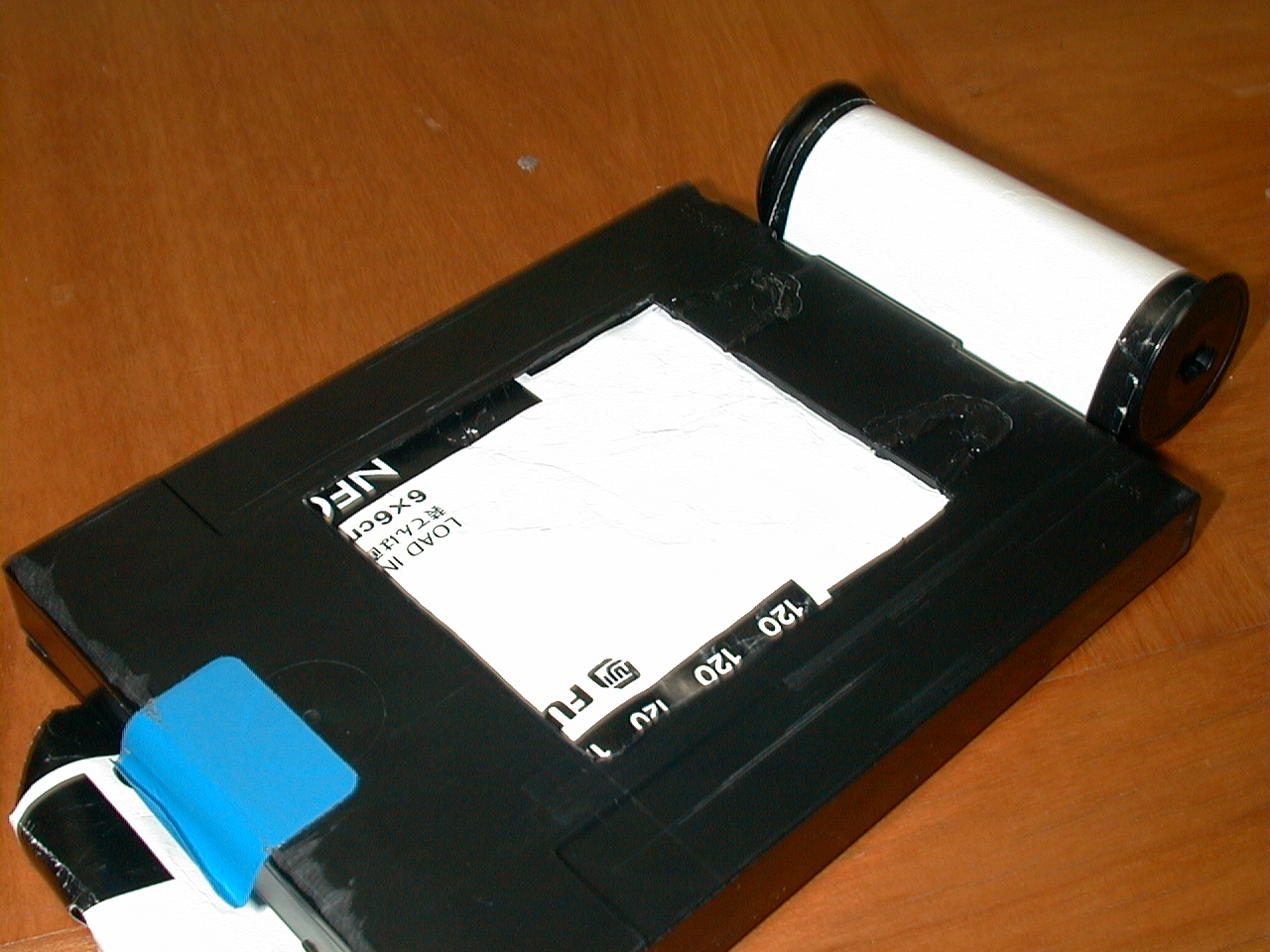

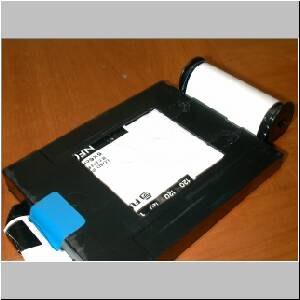

Left to right, internal film guide with pressure plate, camera, and back door. |
![DSC00013.JPG](DSC00013_t.jpg)

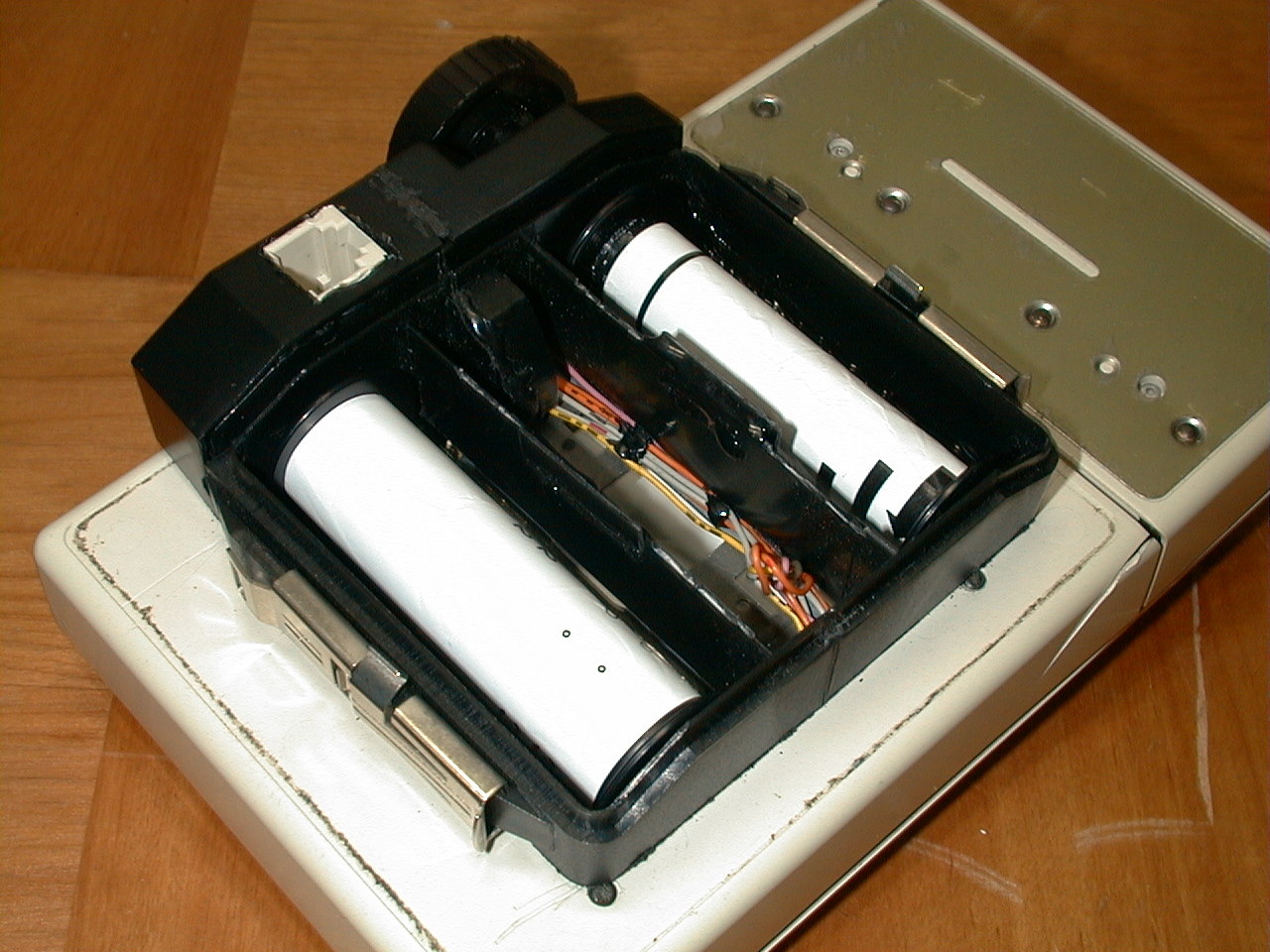

Film gate |
![DSC00014.JPG](DSC00014_t.jpg)

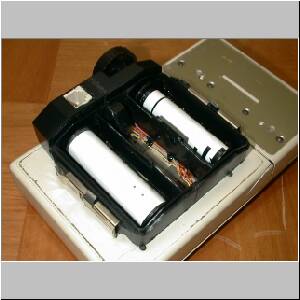

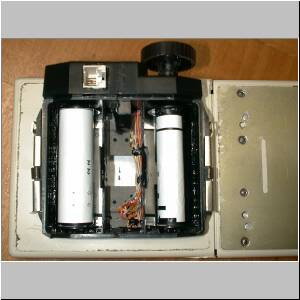

Loading finished
|
![DSC00015.JPG](DSC00015_t.jpg)

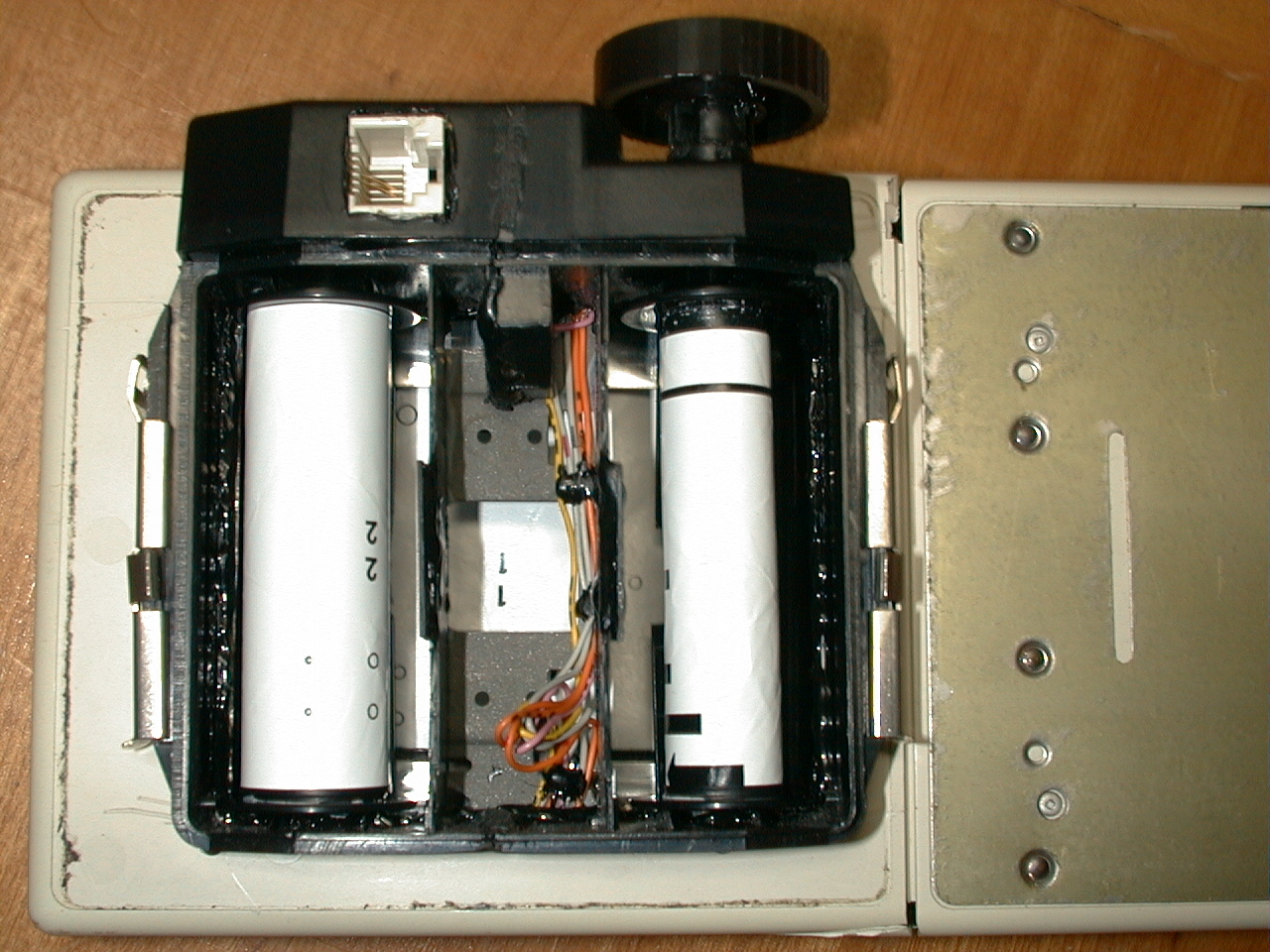

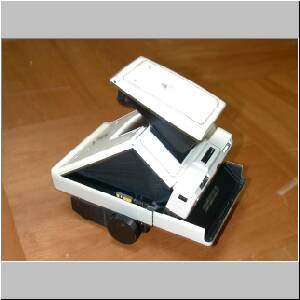

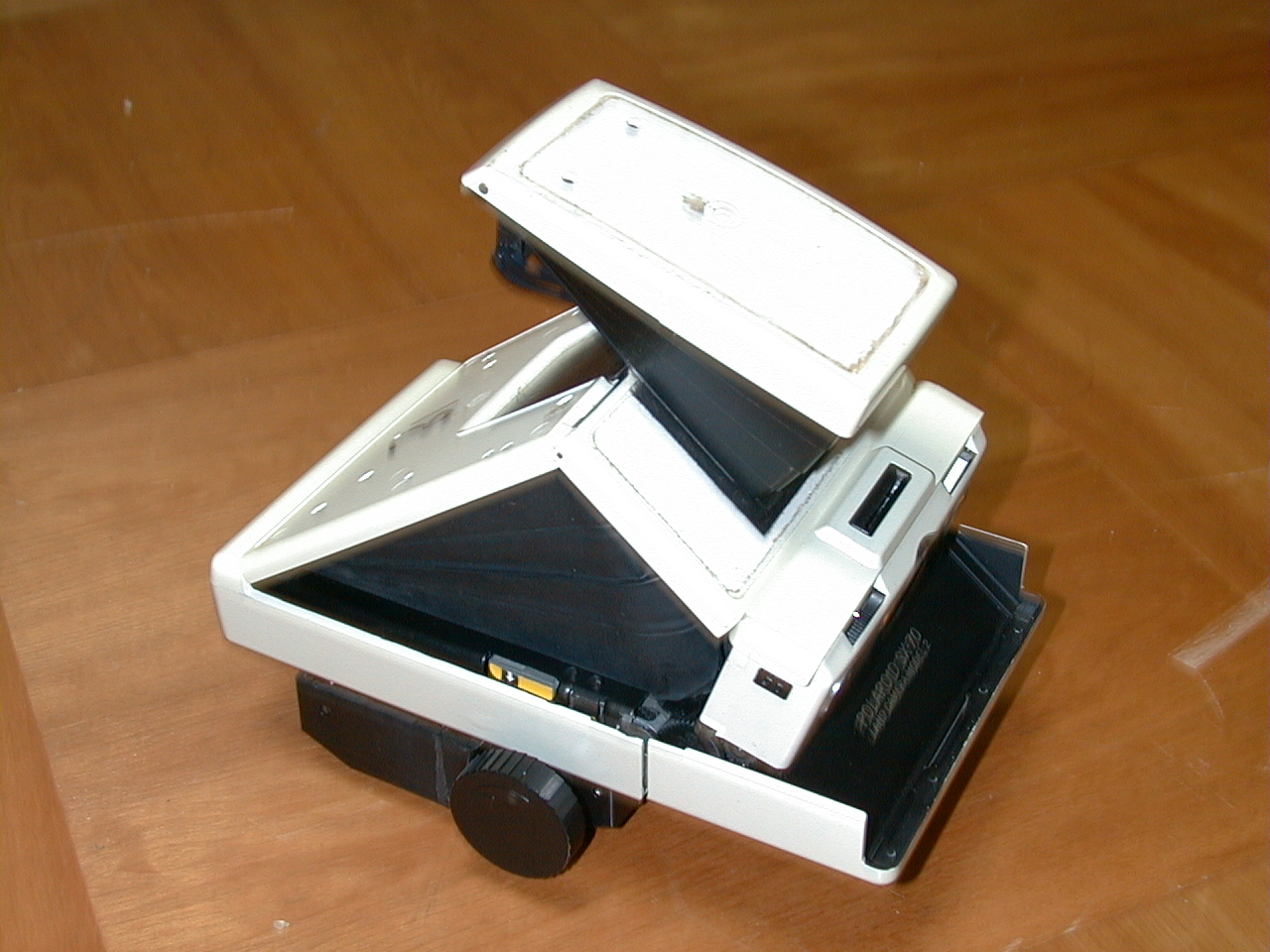

The frame number printed at back paper is visible through the center of roll film holder |
